A small DC motor ideal for vacuum cleaner power brushes
Performance
* You can scroll to see it.
| Model Name | No load | Max Efficiency | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Voltage | Speed | Current | Torque | Speed | Current | Output | Eff | Torque | Current | |
| V | rpm | A | mN-m | rpm | A | W | ％ | mN-m | A | |
| 232960-226-WF-14 | AC100 | 15080 | AC0.14 | 15.8 | 11000 | AC0.36 | 18.2 | 51 | 72 | AC1.2 |
About Motor Performance
The motor products shown on the website are examples of development. Also, actual results of their applications are shown. Therefore, motor performance, appearance, etc. may differ from the products provided. In addition, it may be difficult to provide products identical to the specifications listed here. Please contact our sales office for the details.

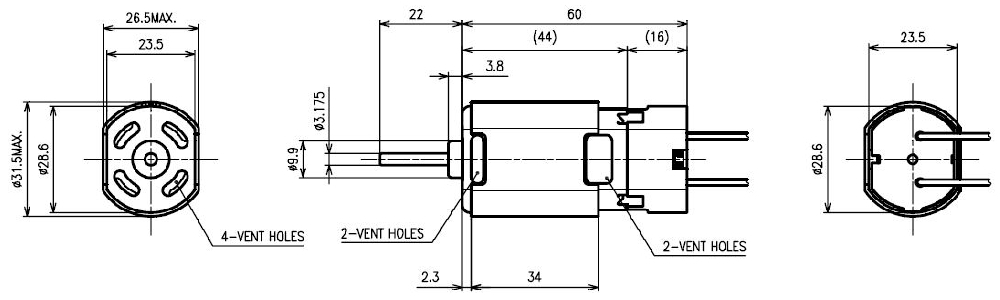

Dimensions
Performance Chart
How to Read the Motor Model Number
The model number for flat motors is basically a 6-digit number. The first two digits represent the distance between parallel surfaces, the middle two digits represent the diameter, and the last two digits represent the length.
