スポイラー等の車載用に実績のある小型DCモーター

性能表

※スクロールしてご覧いただけます。

Model Name		No load		Max Efficiency					Stall
	Voltage	Speed	Current	Torque	Speed	Current	Output	Eff	Torque	Current
	V	rpm	A	mN-m	rpm	A	W	％	mN-m	A

モータの性能について

本サイトに記載の製品仕様は、当該製品での顧客ご要求仕様の実現例となります。その為、モーター性能、外観等は、ご提供する製品と異なることがあります。また、掲載の仕様と同一の製品のご提供が難しい場合があります。予めご了承下さい。

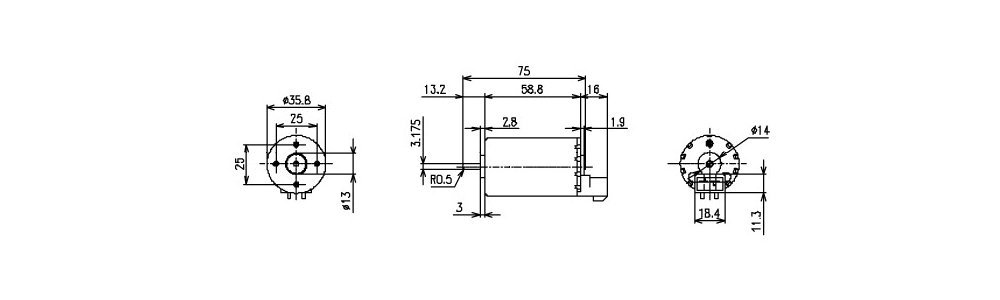

寸法

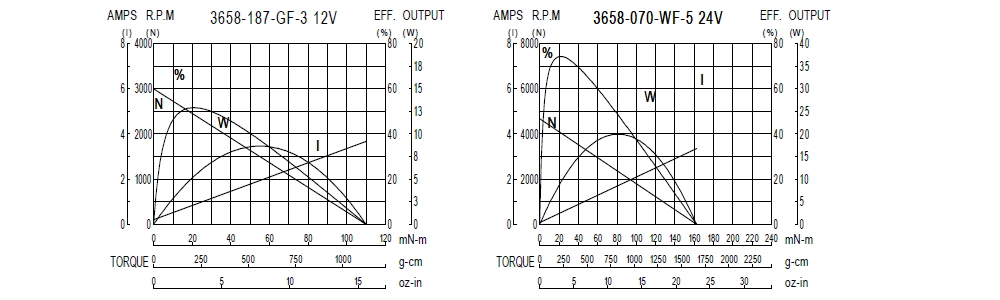

特性図

モータ型番の読み方

円筒形モータの型番は4桁の数字が基本です。前の2桁がモータの直径を、後ろの2桁がモータの長さを表しています。
